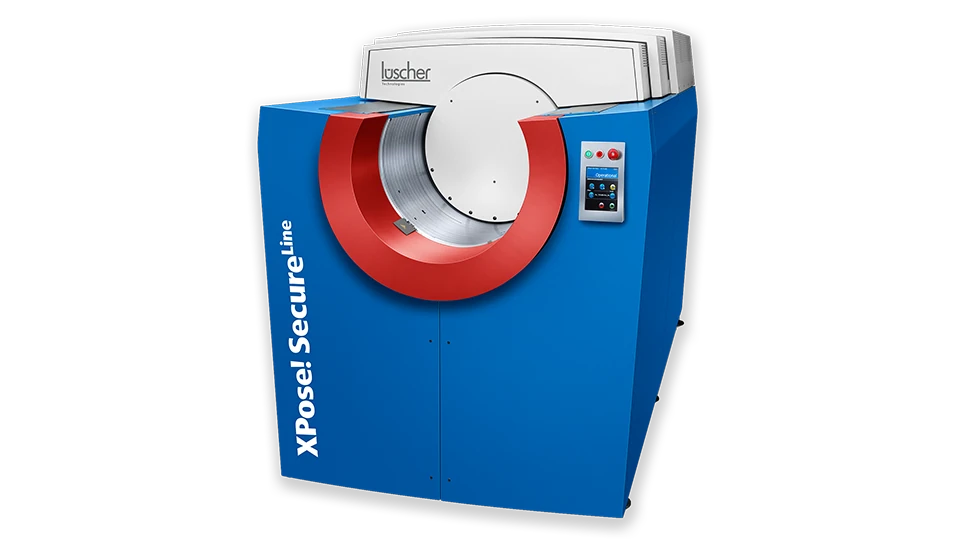

XPose! Secure^Line

Built for Maximum Precision

For High-Security Documents

More than 70 years of experience in machine construction and in the Graphic Arts Industry have been brought into the design of XPose! Secure^Line. As a result of decades of successful partnerships with the world’s leading security printers such as Koenig & Bauer Banknote Solutions, XPose! Secure^Line by Lüscher Technologies AG has become the standard prepress equipment in this particular market.

Standard resolution of 5080 dpi (Secure)
Standard resolution of 8000 dpi (Secure^Plus) with option 9600 dpi
Hybrid models available
Custom-built registering systems
Smallest addressable pixel size of 0.00264 mm at 9600 dpi

XPose! SecureLine, Product-Brochure

XPose! SecureLine Product Brochure

Leading System in Security Printing

With optical resolutions of 8000 dpi for the Secure model and 9600 dpi for the SecurePlus model, XPose! SecureLine meets the highest requirements in security printing. Whether micro texts, complex guilloche patterns, or any other security features have to be imaged: XPose! SecureLine complies with the most stringent security requirements.

Benchmark in Banknote Printing

Imaging systems for banknote printing with a resolution of 10’160 dpi are exclusively distributed by Koenig & Bauer Banknote Solutions SA, which has been serving the banknote printing market under its own name and its own machine design as an exclusive CToP partner for Lüscher CtP systems. This cooperative mutual partnership was first established in 1995.

For High-Security Documents

With resolutions up to 9600 dpi.

For High-Security Documents

With Resolutions up to 9600 dpi

Also Available as Hybrid System

Any model of the XPose! Secure^Line can also be configured as a hybrid system upon special request. XPose! T-Flex, for instance, is the hybrid version used to process thermal offset and letterpress plates. And XPose! UV-Flex the hybrid unit to process conventional UV or letterpress plates and rotary screens, such as Screeny® by Gallus, TecScreen® by Kocher + Beck, or RotaPlate® by Stork.

Fully Automatic and Continuous Calibration

XPose! include the unique Continuous Calibration Technology (CCT). During the exposure, the performance of every laser is monitored and automatically adjusted if necessary. Costly incorrect exposures can be eliminated thereby.

Custom-built Registering System

Upon special request, Lüscher can integrate any manual or pneumatic registering system. This guarantees the highest positioning accuracy of the image on the printing plate. As a result, the set-up time in the printing system is substantially reduced, which leads to significant savings in terms of material and cost.

fleXtreme! Optic for multiple resolutions

The fleXtreme! optic is an in-house development by Lüscher and allows the selection of any desired resolution. The changeover is fully automatic and tailored to requirements. This means that every job could be exposed to any resolution.

Various Configurations

Also available as the hybrid version.

Various Configurations

Also Available as Hybrid Version

Technical Specifications

Model	330 UV Secure^Line		330 TH Secure^Line
Laser type	UV, 405 nm		TH, 830 nm or TH, 940 nm
Model	Secure	Secure^Plus	Secure	Secure^Plus
Resolution	5080 dpi	8000 / 9600 dpi	5080 dpi	8000 / 9600 dpi
fleXtreme!	Optic for multiple resolution up top 5080 dpi
Number of lasers	16, 32, 48, 64	16, 32, 48, 64	16, 32, 48, 56, 64	16, 32, 48, 56, 64
Maximum plate size	Offset and Letterpress 1130 x 950 mm (44,48 x 37,4 inch) / Flexo 950 x 950 mm (37,40 x 37,40 inch)
Maximum plate thickness	Offset 0.2 – 0.4 mm (0.0078 – 0.0157 inch) / Letterpress 0.42 – 2.3 mm (0.01 – 0.09 inch) / Flexo 0.76 – 6.35 mm (0.76 – 0.25 inch)
Dimensions (L x W x H)	2908 x 1367 x 1627 mm (114.5 x 53.8 x 64.1 inch)
Power consumption	2 kW
Weight	1900 kgs (4189 lbs)
Power supply	3 x 400 V + N + PE, 50 – 60 Hz, 32 A
Air supply	6 – 10 bar, 300 l/min (66 gal./min)
Ambient conditions	50 – 65% humidity at 18 – 25 °C (64.4 – 77ºf)

Model	330 UV-Flex Secure^Line 830 nm		330 UV-Flex Secure^Line 940 nm		330 T-Flex Secure^Line
Laser type	UV, 405 nm / TH, 830 nm		UV, 405 nm / TH, 940 nm		TH, 830nm
Model	Secure	Secure^Plus	Secure	Secure^Plus	Secure	Secure^Plus
Resolution	5080 dpi	8000 / 9600 dpi	5080 dpi	8000 / 9600 dpi	5080 dpi	8000 / 9600 dpi
fleXtreme!	Optic for multiple resolution up to 5080 dpi
Number of lasers	16/16, 32/32	16/16, 32/32	16/16, 32/32	16/16, 32/32	16, 32, 48, 64	16, 32, 48, 56, 64
Maximum plate size	Offset and Letterpress 1130 x 950 mm (44.48 x 37.4 inch) / Flexo 950 x 950 mm (37.40 x 37.40 inch)
Maximum plate thickness	Offset 0.2 – 0.4 mm (0.0078 – 0.157 inch) / Letterpress 0.42 – 2.3 mm (0.01 – 0.09 inch)/ Flexo 0.76 – 6.35 mm (0.76 – 0.25 inch)
Dinensions (L x w x H)	2908 x 1367 x 1627 mm (114.5 x 53.8 x 64.1 inch)
Power consumption	2 kW
Weight	1900 KGs (4189 lbs)
Power supply	3 x 400 V + N + PE, 50 – 60 Hz, 32 A
Air supply	6 – 10 bar, 300 l/min (66 gal./min)
Ambient conditions	50 – 65% humidity at 18 – 25 °C (64.4 – 77ºF)
