MultiMesh!

Digital Screen Making

Advantages of the MultiMesh!

Up to 50% lower costs per screen

No mesh fabric or emulsion required

Up to 70% fewer work steps

Process requires no water or chemicals

Environmentally friendly and sustainable screen production

Different thread counts and mesh sizes on a single screen

No yellow light needed

Complete screen production in just a few minutes

Especially suitable for water-based inks

The Technology Behind MultiMesh!

A Revolution in Screen Printing

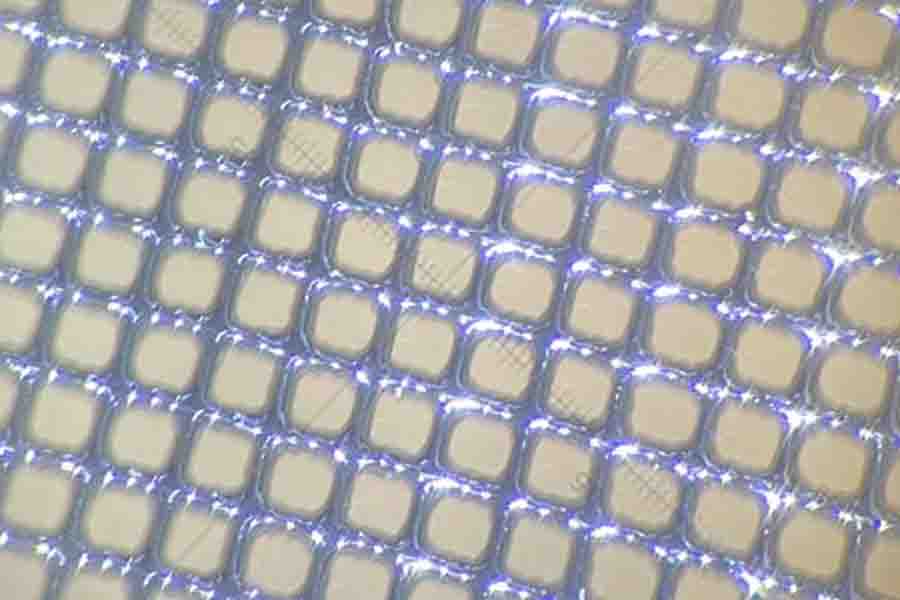

With MultiMesh!, a new era of screen printing begins. Instead of a traditional mesh, we use an innovative plastic film with exceptional properties – durable, precise, and completely closed. This special film is stretched over a self-tensioning frame, creating a 100% closed and stable base ready for imaging. The core innovation: Unlike conventional UV-based systems, the image is applied using high-precision thermal lasers. The printable image is lasered directly into the surface, creating a mesh-like structure that allows ink to pass through exactly where it‘s needed – without using any traditional fabric mesh at all.

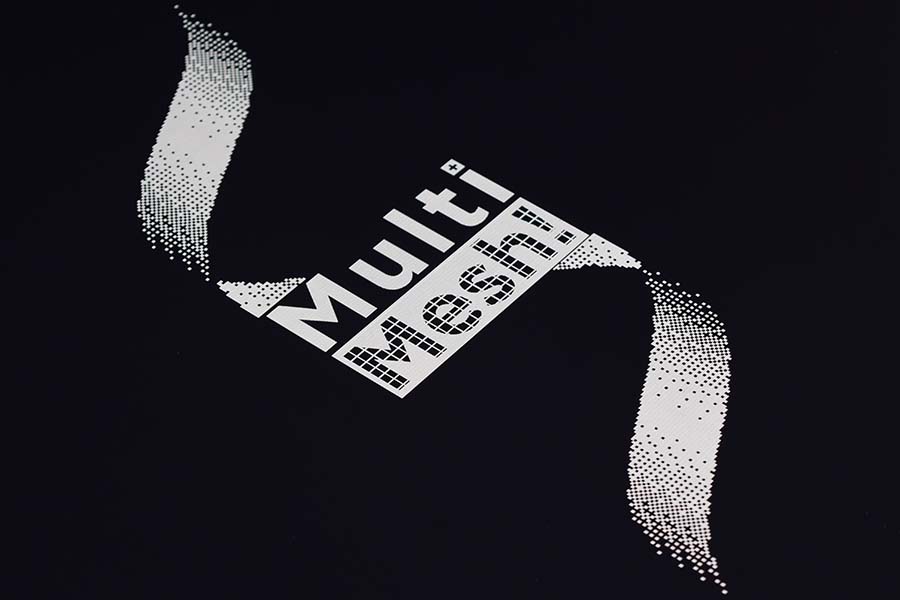

The Result

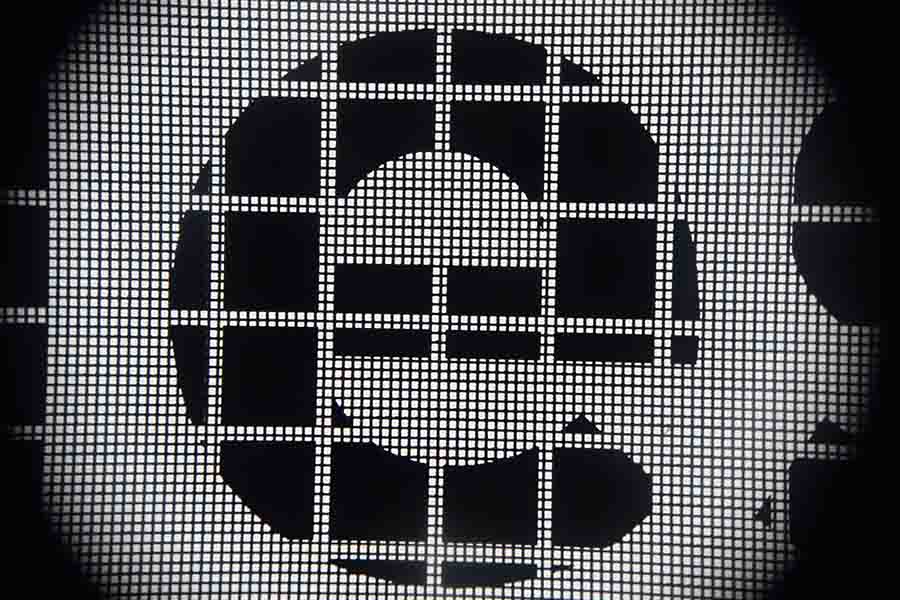

A high-resolution, digitally generated print image – stable, repeatable, and reimagined from the ground up. Another major advantage: Since the mesh is created digitally, multiple mesh structures can be used for different elements of the same design – all on a single screen, in a single process.

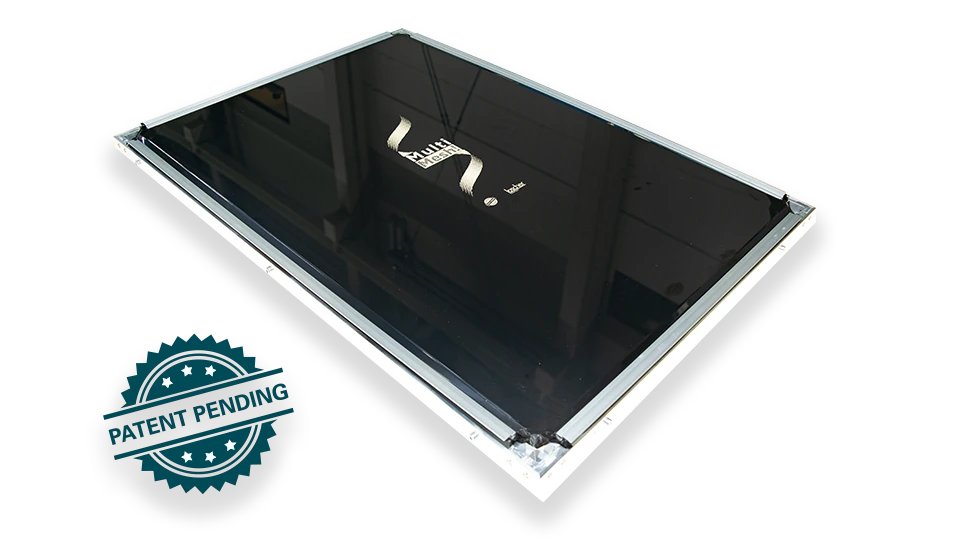

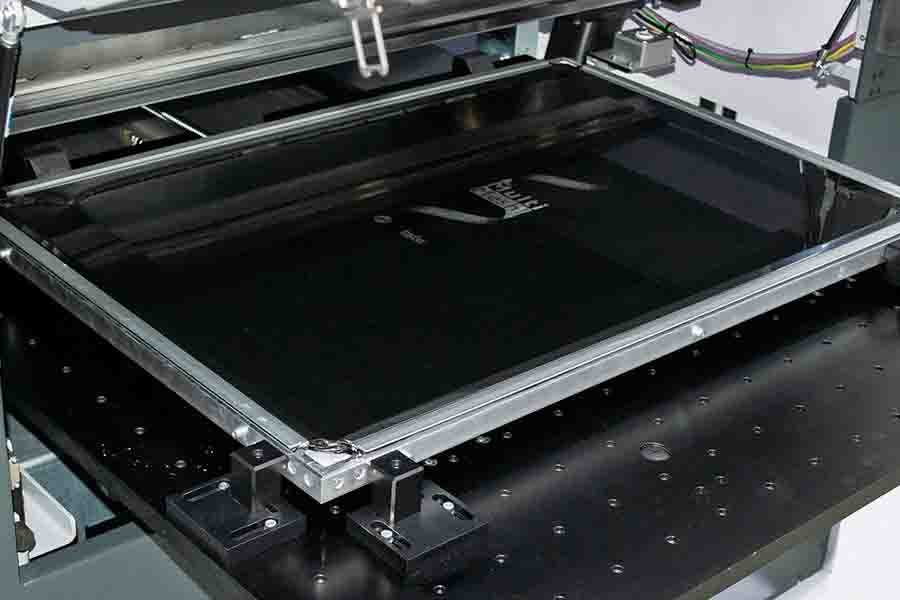

Innovative Pneumatic Self-Tensioning Frame – Designed for MultiMesh! Technology

Specifically developed for our cutting-edge MultiMesh! technology, this pneumatic self-tensioning frame enables fast and fully automated screen stretching using air pressure. Thanks to this innovation, the layering process is significantly accelerated and simplified.


Moreover, since the entire MultiMesh! process requires far fewer intermediate screen changes, only a fraction of the traditional number of tensioning frames is needed – saving both time and resources.

Available Frame Sizes and Corresponding MultiMesh! Tickets (including layers)

We offer the following frame sizes, each matched with the corresponding MultiMesh! ticket – including black
MultiMesh! layers – to ensure maximum flexibility and efficiency in your production process.



MultiMesh! Ticket

XS

S

M

L

XL

XXL

Standard Frame Size (L x W)*

500 x 350 mm

(19.7 x 13.8 inch)

720 x 540 mm

(28.3 x 21.3 inch)

850 x 590 mm

(33.5 x 23.2 inch)

920 x 620 mm

(36.2 x 24.4 inch)

1'100 x 850 mm

(43.3 x 33.5 inch)

1'200 x 950 mm

(47.2 x 37.4 inch)

*other frame sizes upon request

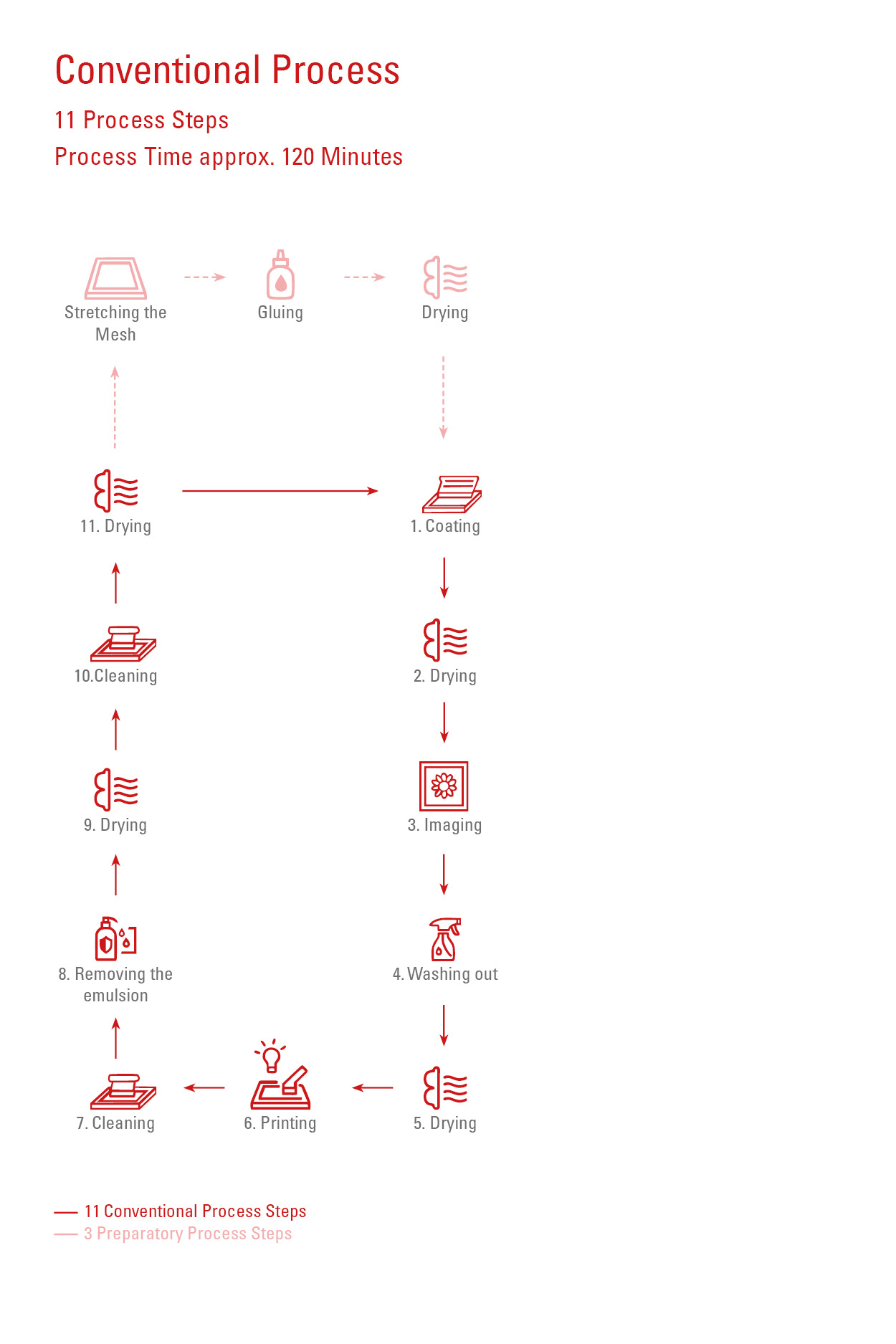

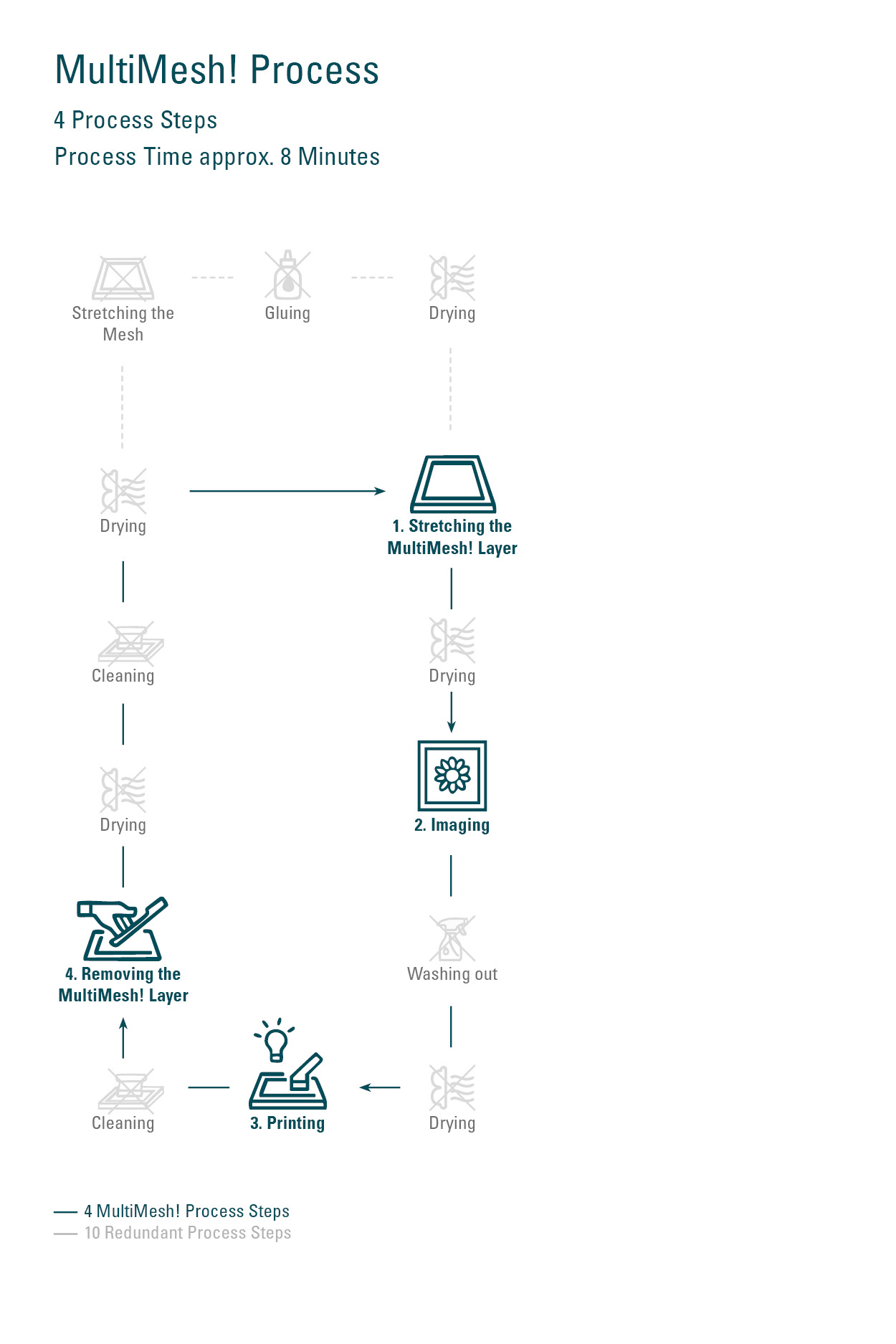

MultiMesh! vs. Conventional Screen Printing Process

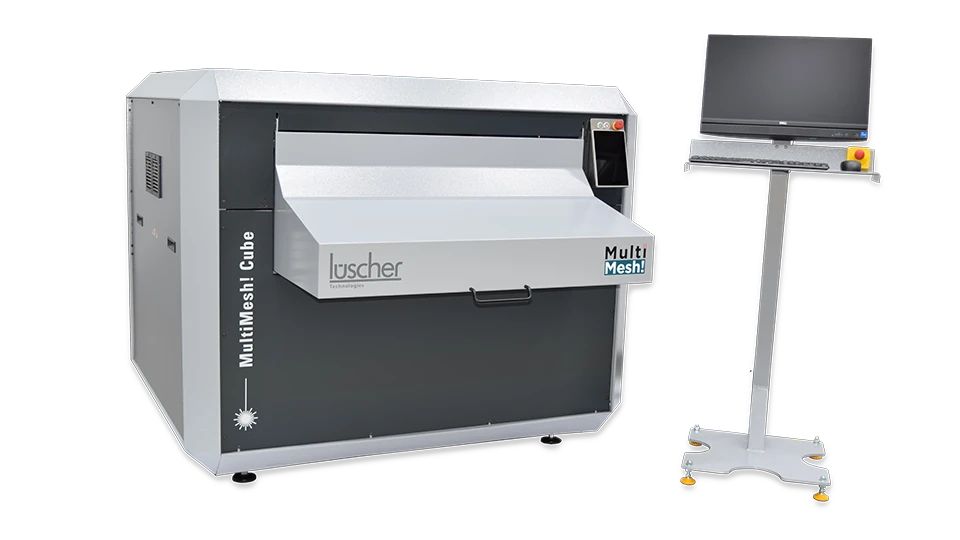

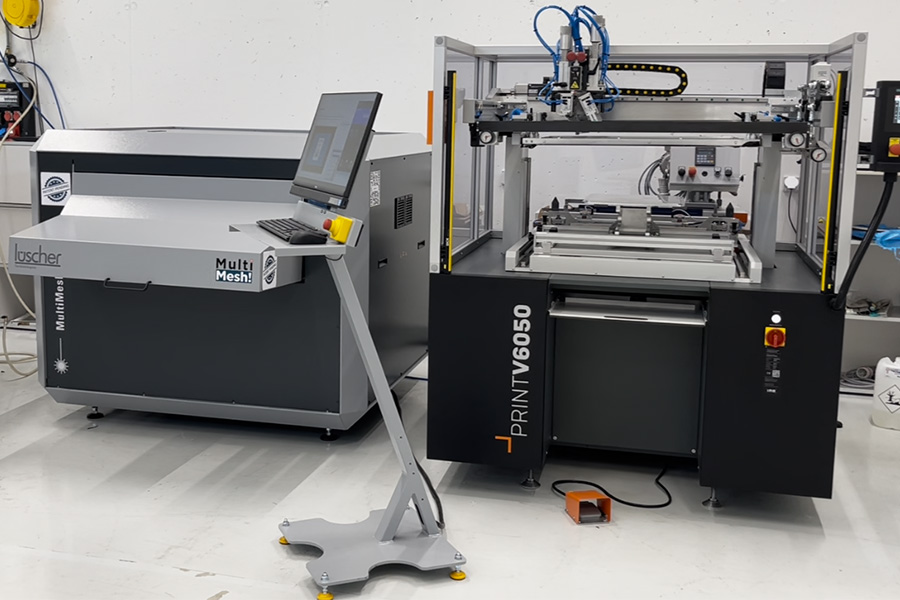

Compatible Machines
