The Revolution in Digital Flexo Plate Making
Machine Type | Max. Plate Size (L x W) | Max. Plate Thickness | Machine Dimensions (L x W x H) | Weight |
XPose! FlexLine 330 | 1'200 x 950 mm (47.2 x 37.4 inch) | 6.35 mm (0.25 inch) | 2'940 x 1'367 x 1'645 mm (115.7 x 53.8 x 64.8 inch) | 1'900 kg (4'189 lb) |
XPose! FlexLine 330L | 1'067 x 1'524 mm (42.0 x 60.0 inch) | 6.35 mm (0.25 inch) | 3'406 x 1'367 x 1'640 mm (134.1 x 53.8 x 64.6 inch) | 2'400 kg (5'291 lb) |
XPose! FlexLine 360L | 1'270 x 2'032 mm (50.0 x 80.0 inch) | 6.35 mm (0.25 inch) | 4'607 x 1'585 x 1'899 mm (183.9 x 61.6 x 74.8 inch) | 3'800 kg (8'378 lb) |
Feature | FlexLine | FlexLine HiResPlus |
Resolution | 2'000 / 2'540 / 4'000 / 5'080 / 8'000 dpi | 9'600 bis zu 20'320 dpi |
Laser Type | TH, 980 nm | TH, 975 nm |
Number of Laser Diodes | 16 / 32 / 48 / 64 | 16 / 32 / 48 / 64 / 96 / 128 |
Power Supply | 3 x 400 V + N + PE / 50 - 60 Hz / 32 A | 3 x 400 V + N + PE / 50 - 60 Hz / 32 A |
Air Supply | 6 - 10 bar, 300 l/min | 6 - 10 bar, 300 l/min |
Power Consumption | approx. 2 kW / 2.5 kW | approx. 2 kW / 2.5 kW |
Ambient Conditions | 40 - 65 % humidity at 18 - 25 °C (64.4 - 77 °F) | 40 - 65 % humidity at 18 - 25 °C (64.4 - 77 °F) |
Room Conditions | vibration-free floor | vibration-free floor |

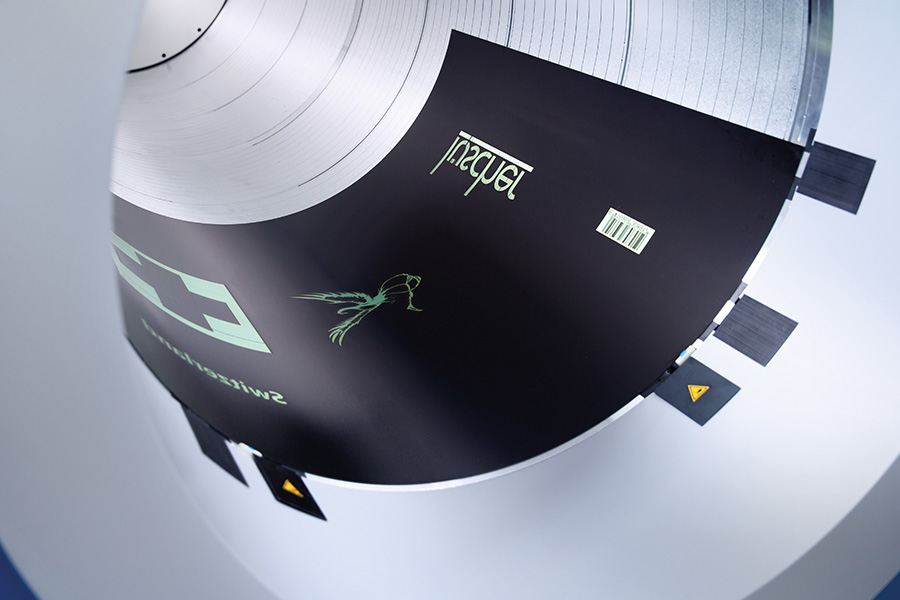

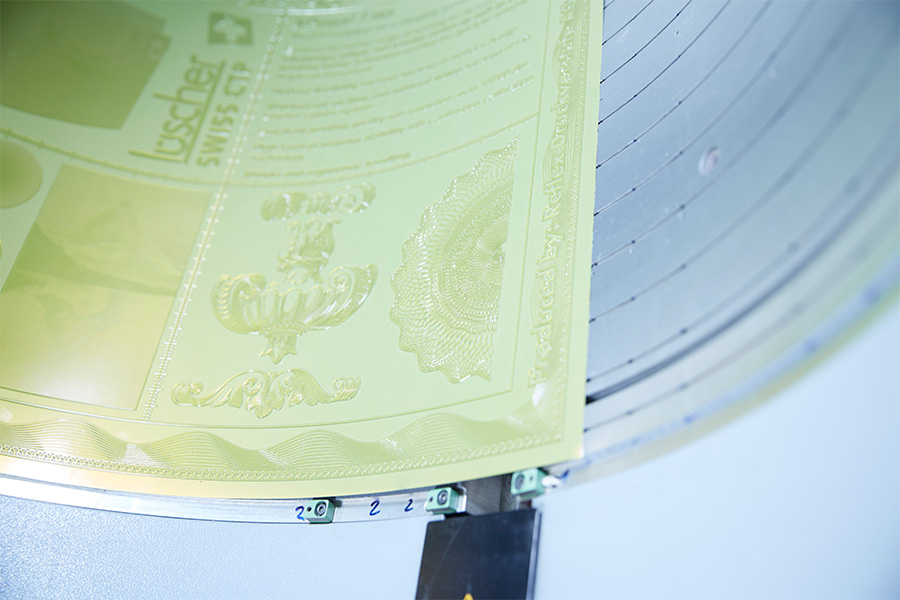

The unique patented combination of inside and outside drum technology allows for easy and quick operation. There is no need for tension rails or time-consuming taping of the plates onto the drum, since the plates, regardless of size or thickness, are static. Even printing plates of 50 x 80 inch can easily be loaded or unloaded by the operator.
XPose! FlexLine guarantees the highest performance up to 13 m2/h and maximum flexibility.
The fleXtreme! optic is an in-house development by Lüscher. With a simple click of the button, you can switch between 5 different resolutions (2’000 / 2’540 / 4’000 / 5’080 / 8’000 dpi) based on your needs for quality and performance.

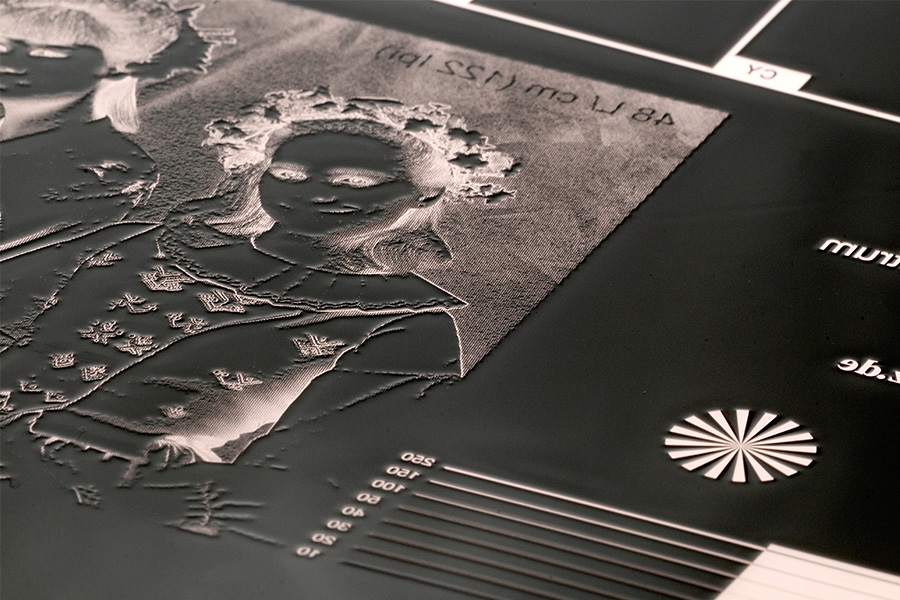

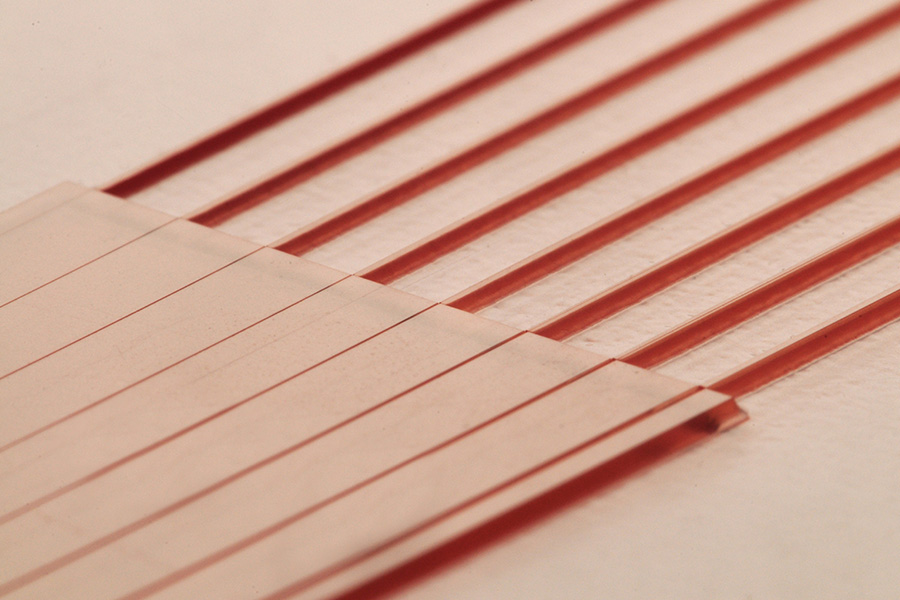

The X!Mask software, developed by Lüscher, automatically recognizes surfaces, small dots, or lines. It fully automates the generation of structures or microcells on the surfaces, allowing for higher density values in solid areas. The operator can freely configure both the shape and size of the microcells. Highlight dots, as well as fine lines, can be identified by the software and are automatically assigned broad shoulders. The software is independent of the RIP and runs fully automatically on the output computer.
With the XPose! FlexLine HiResPlus, you can achieve the best quality with the highest possible resolution of 20'320 dpi available on the market today. The fleXtreme! optic is an in-house development by Lüscher. With a simple click of the button, you can switch between different resolutions (9'600 / 20'320 dpi) based on your needs for quality and performance.
The X!Mask software, developed by Lüscher, automatically recognizes surfaces, small dots, or lines. It fully automates the generation of structures or microcells on the surfaces, allowing for higher density values in solid areas. The operator can freely configure both the shape and size of the microcells. Highlight dots, as well as fine lines, can be identified by the software and are automatically assigned broad shoulders. The software is independent of the RIP and runs fully automatically on the output computer.
The fiber-coupled laser diodes operate in the 980 nm range and are characterized by an ultra-long service life of +15’000 imaging hours. They are completely maintenance-free, no need for an active cooling system.
XPose! FlexLine includes the unique Continuous Calibration Technology (CCT). During imaging, the performance of each laser is monitored and automatically adjusted if necessary. Costly incorrect imaging can thus be avoided.
Lüscher’s patented laser diode technology ensures minimal power usage of approx. 2 kW / 2.5 kW, reducing costs and providing a lower total cost of ownership. This promotes environmentally friendly production for customers.
XPose! FlexLine system operates efficiently without the need for any wear parts or consumables, ensuring minimal maintenance and long-lasting performance. Lüscher‘s maintenance software guides the operator through the simple maintenance tasks and guarantees high reliability. XPose! FlexLine is equipped with a port for Remote Support Service, which can be directly linked to our technical support via the internet.
