MaschinentypLasertypAnzahl LaserdiodenAuflösungGewicht
MultiMesh! CubeTH, 974 nm32 / 48 / 641'200 / 1'270 dpi750 kg (1'653 lb)
MerkmalSpezifikation
Standard Rahmenformat (L x B)*XS 500 x 350 mm (19.7 x 13.8 inch)
S 720 x 540 mm (28.3 x 21.3 inch)
M 850 x 590 mm (33.5 x 23.2 inch)
L 920 x 620 mm (36.2 x 24.4 inch)
XL 1’100 x 850 mm (43.3 x 33.5 inch)
XXL 1’200 x 950 mm (47.2 x 37.4 inch)
Maschinenabmessungen (L x B x H)1’925 x 1’632 x 1’338 mm (75.8 x 64.3 x 52.7 inch)
Max. Belichtungsfläche (L x B)950 x 710 mm (37.4 x 28.0 inch)
Elektrischer Anschluss230 V / 50 - 60 Hz / 16 A
Stromverbrauchca. 0.8 kW
Umgebungsbedingungen40 - 65 % Luftfeuchtigkeit bei 18 - 25 °C (64.4 - 77 °F)
Raumbedingungenkein Gelblicht erforderlich!, Vibrationsfreier Fussboden
*andere Rahmenformate auf Anfrage

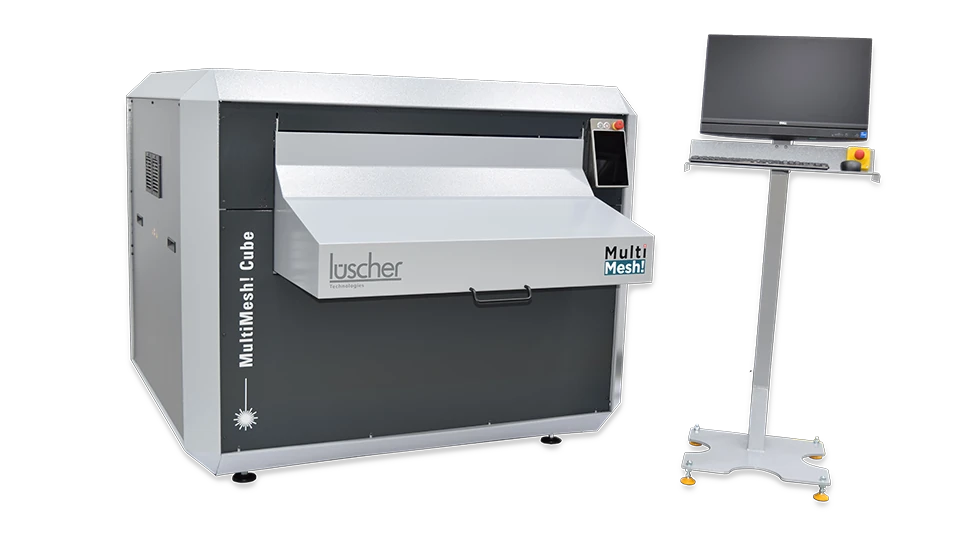

MultiMesh! Cube Produktbroschüre

(Nur in Englisch verfügbar)
